Types of the carbide nozzles

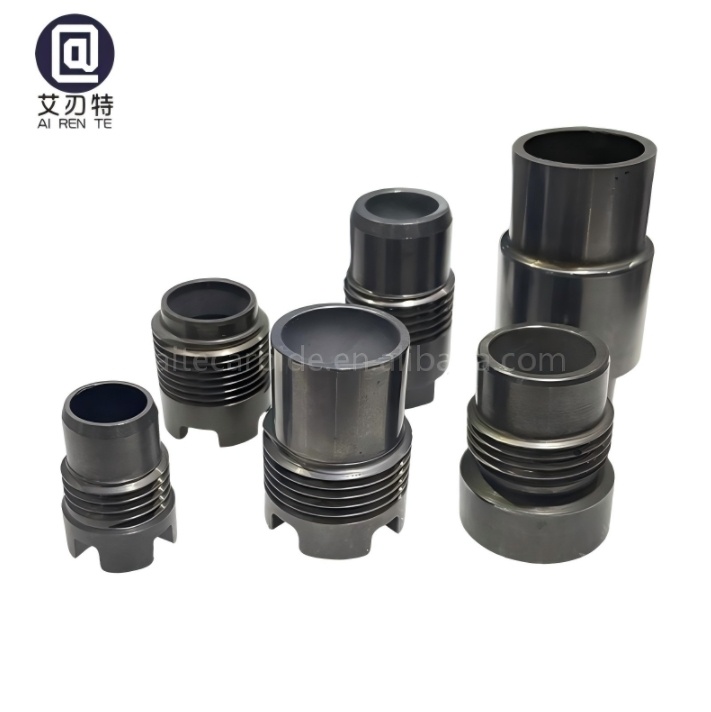

There are two main types of the carbide nozzles for the drill bits. One is with thread, and the other is without thread. Carbide
nozzles without thread are mainly used on the roller bit, carbide nozzles with thread are applied mostly on the PDC drill bit.
According to different handling tool wrench, there are 6 types threaded nozzles for PDC bits:

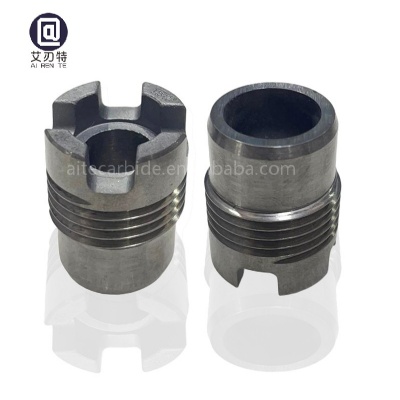

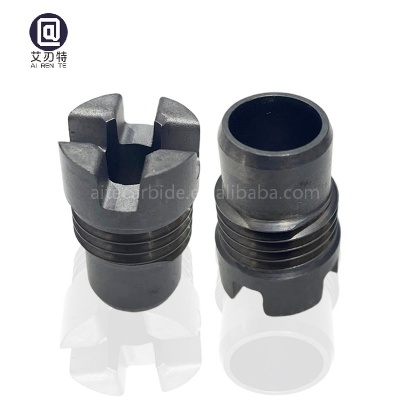

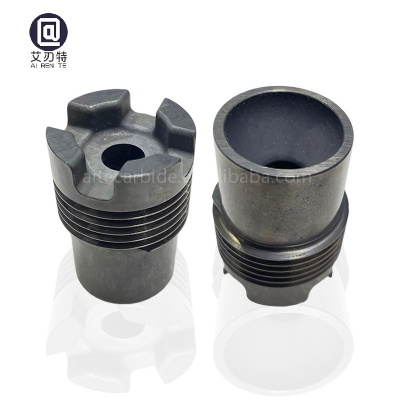

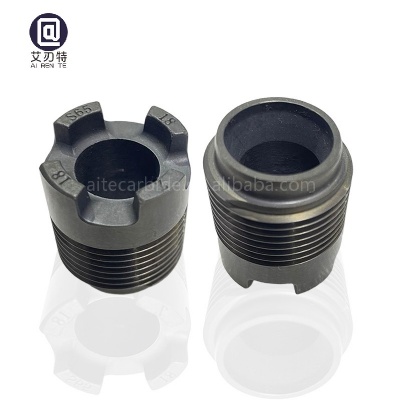

1. Cross groove thread nozzles
2. Plum blossom type thread nozzles
3. Outer hexagonal thread nozzles
4. Internal hexagonal thread nozzles
5. Y type (3 slot/grooves) thread nozzles
6. gear wheel drill bit nozzles and press fracturing nozzles
We can not only produce standard tungsten carbide nozzle, we also be able to produce the customized nozzles according to the drawings or samples.

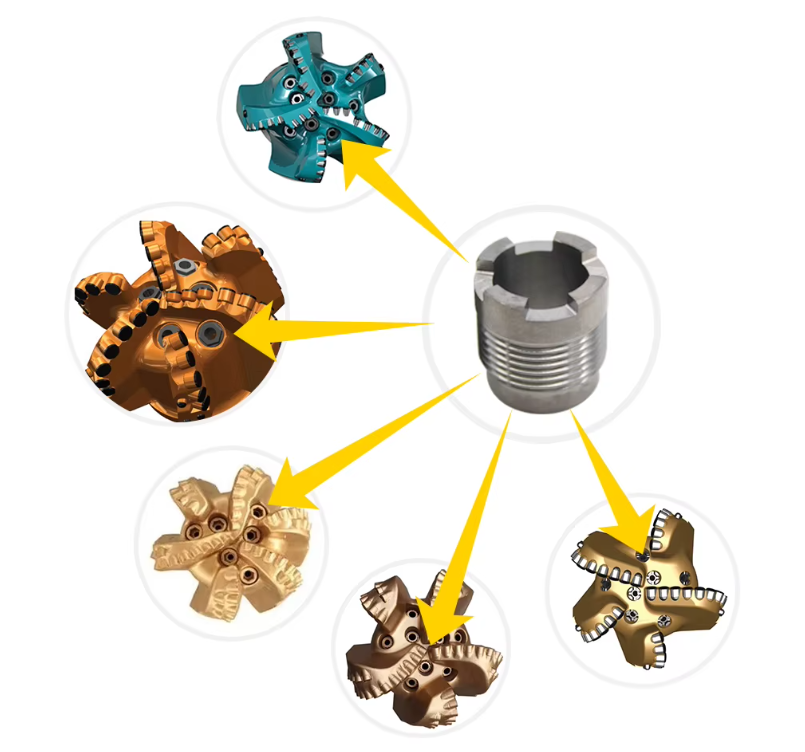

Application
Our Advantages
1. 99.95% high purity tungsten carbide powder is used.
2. High wear resistance and impact resistance.
3. Non-destructive ultrasonic inspection, no blisters, no pores, high material density.
4. Can be produced according to customer size or sample (drawing).
5. Tungsten carbide mold has a variety of sizes for you to choose. Popular grades are K10, K20, K30, and K40.

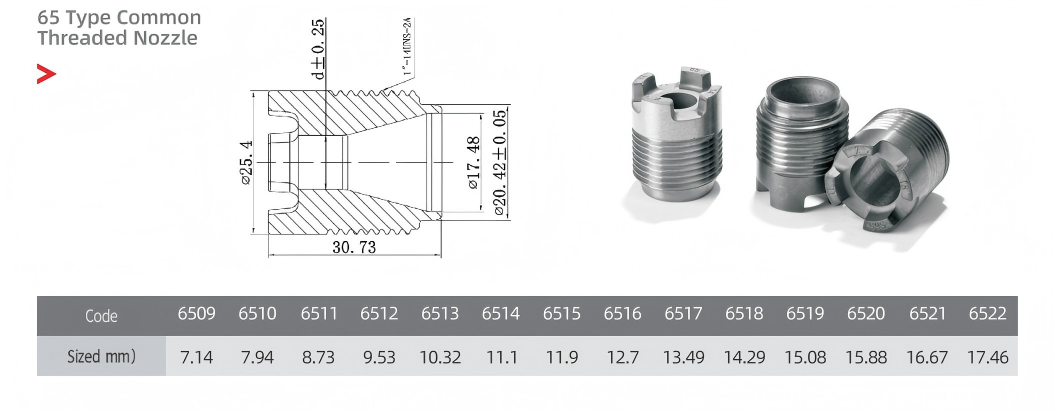

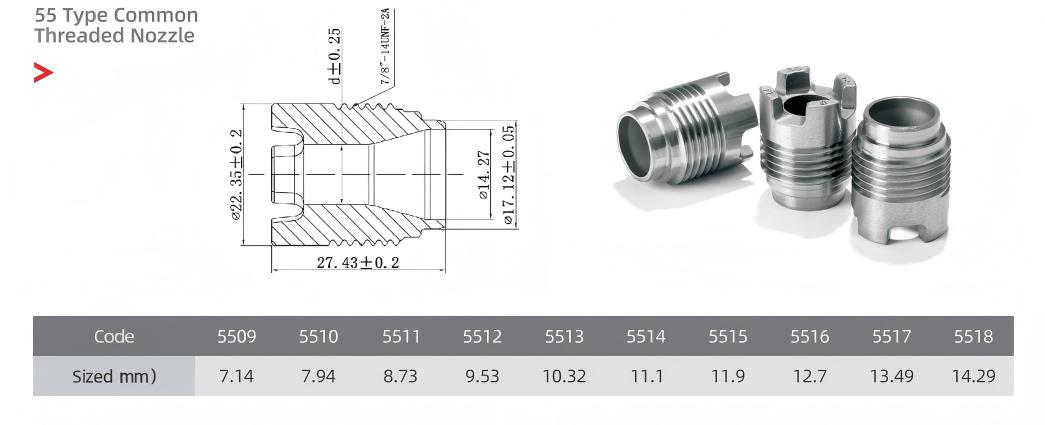

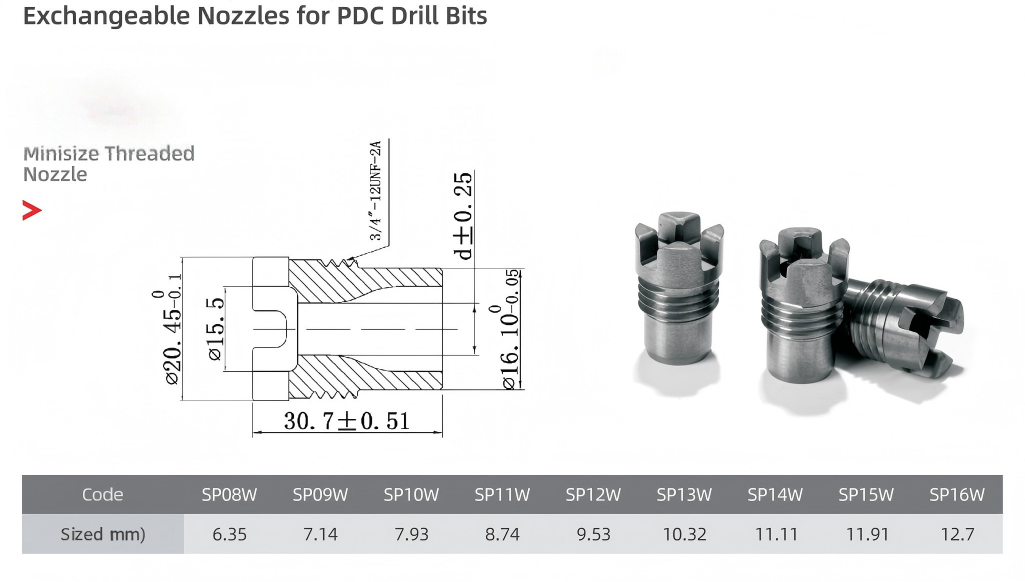

Size Introduction
Size Introduction
We support OEM/ODM! Welcome to contact us!
