Zhuzhou Aite Cemented Carbide Co., Ltd

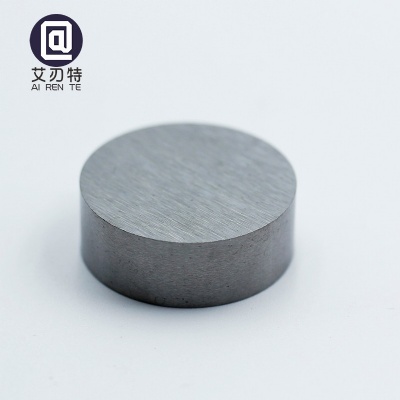

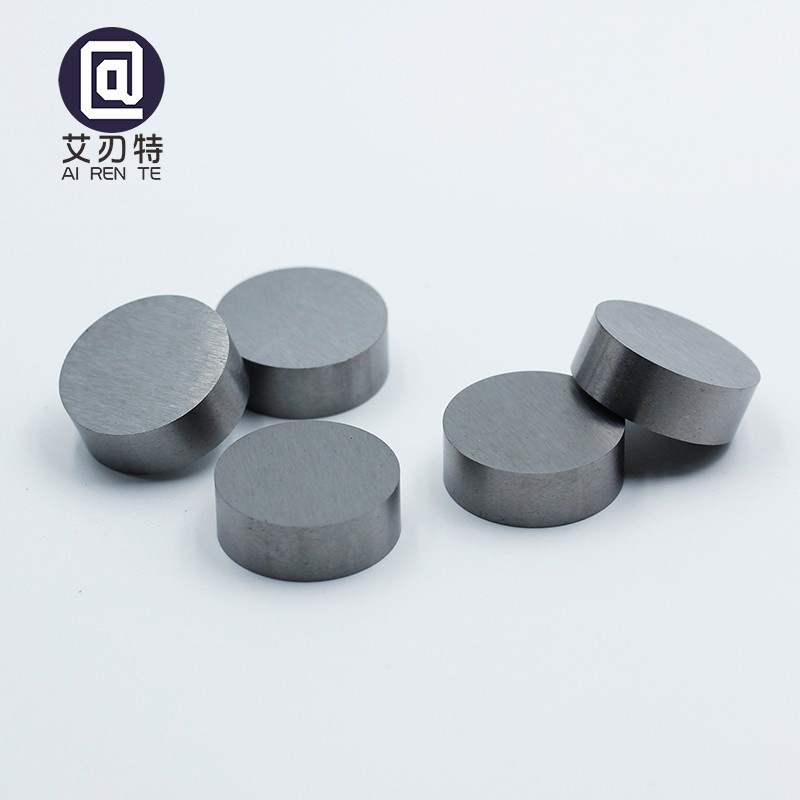

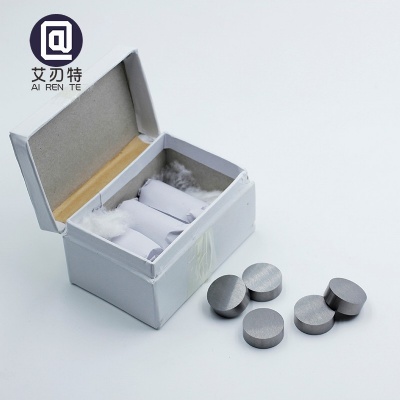

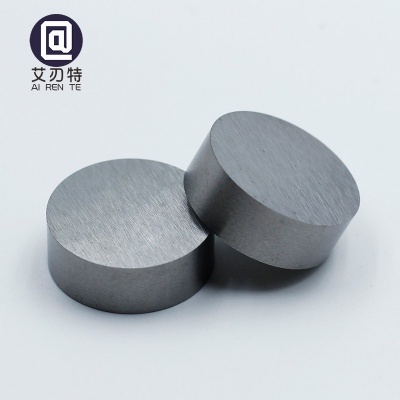

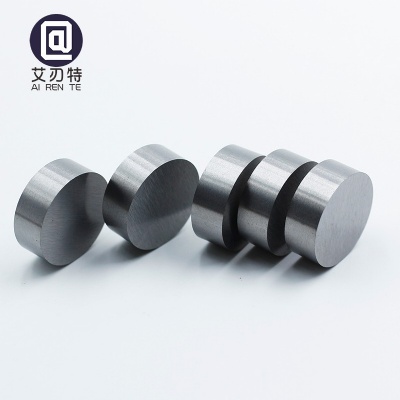

Customized 10% Cobalt D21.9mm*7.9mm Tungsten Carbide Rod Sintered Cemented Solid Carbide Round Rod
Application fields of cemented carbide round bars
1.The carbide rod is used to make PCB micro drills, carbide drills, hard alloy milling cutters, carbide reamerous tools.
2.For processing aluminum alloy, stainless steel, heat-resistant alloy steel, ductile iron, nickel-based and titanium alloys, colored metals and other products.
3.For a plurality of plugins, silicon steel sheets and cold rolled sheets, stainless steel punches, thimbles, and punching needles.
4.Used to make a hard alloy engraving knife, a hard alloy rider, a hard alloy rotary file.
5.Used to make a hard alloy grinding rod.
Specifications of Unground sintered carbide rods:
Unground sintered carbide rods - length<100mm
Unground sintered carbide rods - length 100~150mm
Unground sintered carbide rods - length 310mm
Unground sintered carbide rods - length 330mm
Specifications of Ground tungsten carbide rods:
Ground tungsten cemented carbide rods ISO h6- length<100mm
Ground tungsten cemented carbide rods ISO h6- Length 100~150mm
Ground tungsten cemented carbide rods ISO h6 (Inch)
Milling Cutting Blanks ISO h6, Chamfered one end
Below are our regular sizes:
|
TYPE(φD×L) |
D(mm) |
L(mm) |
|
φ0.3×L |
0.3 |
≤450 (包含38.5,50,100,150,310,330,450) |
|
φ0.5×L |
0.5 |
|
|
φ0.7×L |
0.7 |
|
|
φ0.8×L |
0.8 |
|
|
φ1.0×L |
1.0 |
|
|
φ1.1×L |
1.1 |
|
|
φ1.2×L |
1.2 |
|
|
φ1.5×L |
1.5 |
|
|
φ2×L |
2 |
|
|
φ4×L |
4 |
|
|
φ6×L |
6 |
|
|
φ8×L |
8 |
|
|
φ10×L |
10 |
|
|
φ12×L |
12 |
|
|
φ14×L |
14 |
|
|
φ16×L |
16 |
|
|
φ18×L |
18 |
|
|
φ20×L |
20 |
|
|
φ22×L |
22 |
|
|
φ24×L |
24 |
|
|
φ26×L |
26 |
|
|
φ28×L |
28 |
|
|
φ30×L |
30 |
|
|
φ32×L |
32 |
|
|
φ35×L |
35 |
|
|
Φ40×L |
40 |
|
|
...... |
...... |
|
|
Unground tolerance:D φ2－φ12（+0～+0.35），φ14－φ30（+0～+0.6），长度L(+0～+L*1%) Ground tolerance：H6,h6 |
||

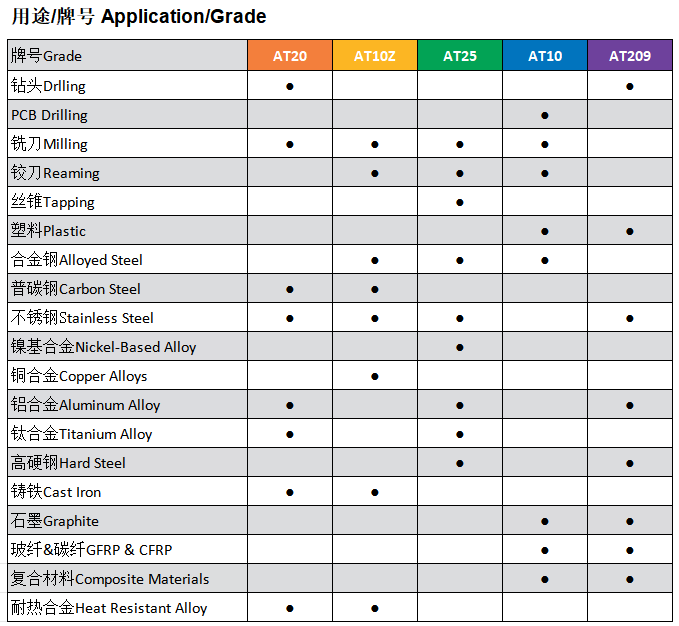

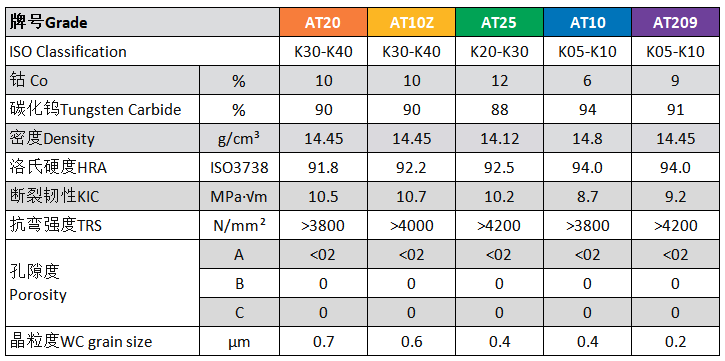

Grade Introduction
There are many different choices in diameters, lengths and chemical compositions, which could all be manufactured according to clients' special requirements. Therefore, if you have interest in buying tungsten carbide rods, please do not hesitate to e-mail us with your specific requirements to : [email protected]
